The unique RFID antenna and pioneering RFID module ensure accurate printing and encoding, as well as enabling a 12mm minimum inlay space.
Innovative design on label detection fixes the antenna on the tear-off position. Since each finished label goes through the print-head, it can be read to detect defective labels.
Advanced design allows printing on labels without a margin, resulting in no wasted white space, hence a total print cost savings.
User-friendly design ensures convenience and proficiency by allowing automatic label size calibration and the ability to easily adjust the antenna position through the setup menu.
Parameter
|
Printing Method |
Thermal Transfer |
|
Printing Resolution |
300 dpi |
|
Max Printing Speed |
6 ips |
|
Max Printing Width |
4.09″ (106 mm) |
|
Max Printing Length |
157″ (4000 mm) |
|
RFID |
Integrated UHF Reader/Encoder, EPC Gen 2 Class1 / ISO 18000-6C |
|
Memory |
8 MB FLASH ROM, 16 MB SDRAM |
|
Tag size |
Width: maximum 4.41" (112 mm), minimum 0.98" (25 mm)Outer diameter: maximum 6" (152 mm), inner diameter: minimum 1" (25.4 mm) |
|
Ribbon Size |
Outer diameter: up to 2.75" (70 mm), inner diameter: 1" (25.4 mm) Maximum width: 4.33" (110 mm), maximum length: 984.25' (300 m), both internal and external carbon |
|
Paper detection method |
Reflective (movable)/transmissive (centered/right) |
|
Fonts |
Western dot matrix font library, downloadable vector font library, Chinese dot matrix font library optional |
|
Barcode Types |
Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2and 5 add-on, EAN-13/8/128, UCC-128 and other one-dimensional barcodes; MaxiCode, PDF417, Datamatrix, QR Code and other 2D barcodes |
|
Interfaces |
RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB Host, |
|
Power Rating |
100~240 V, 50/60 Hz, 4.0 A |
|
Weight |
3.5 kgs |
|

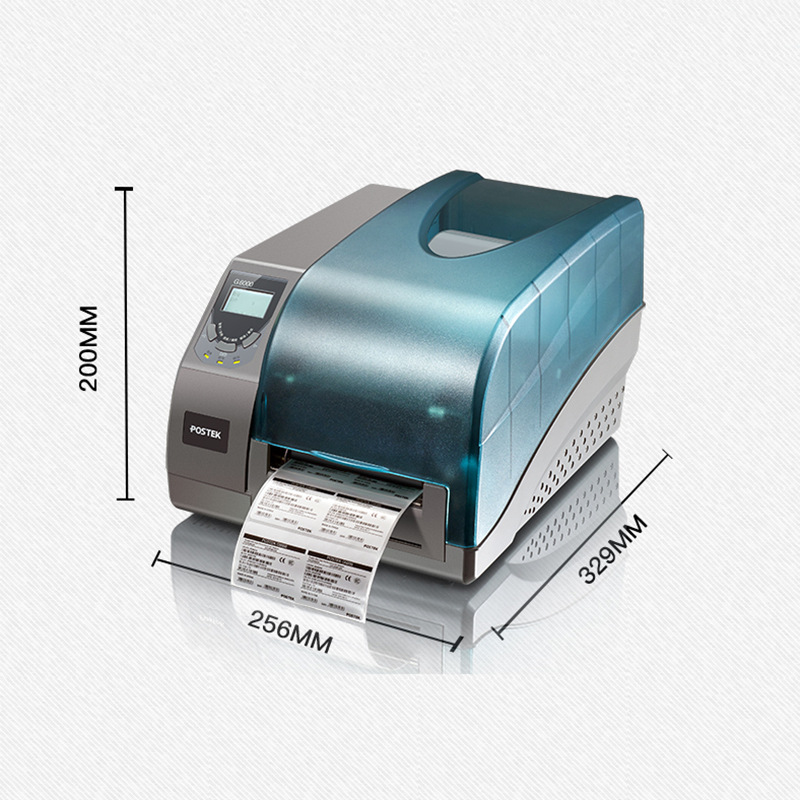

Dimensions |
W 256 mm x D 354 mm x H 205 mm |
|
Operating Environment |
Temperature: 0℃– 40℃ (32°F ~ +104°F); Relative humidity: 5% - 85% non condensing |
|
Storage Environment |
Temperature: -40℃– 60℃ (-40°F ~ +140°F); Relative humidity: 5% - 85% non condensing |
|
Optional Items |
Wi-Fi module, Bluetooth module, cutter, external label rewinder, external paper holder, paper guide attachment cap (the narrowest paper guide width is 8mm |
