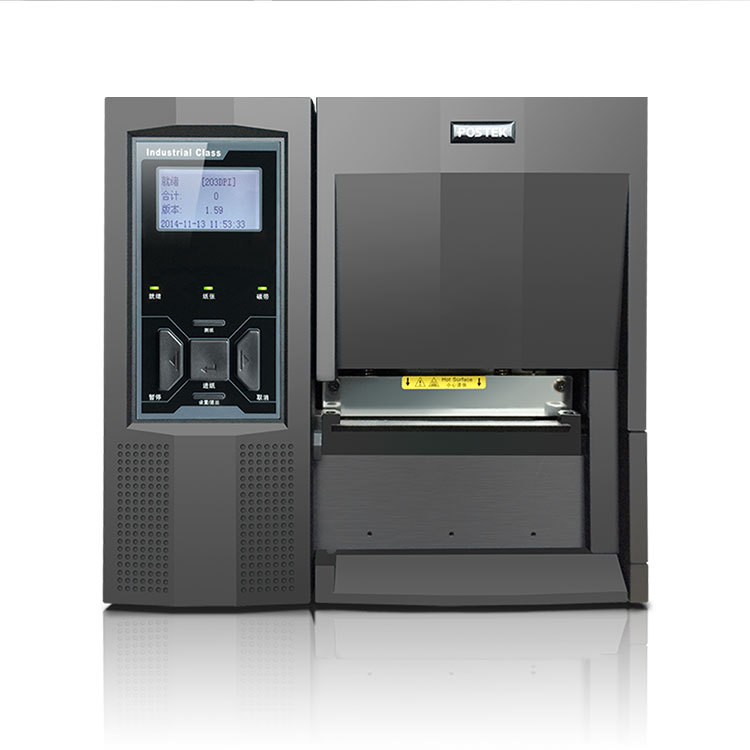

This is UHF RFID Label Printer for RFID label printing and encoding chip ID.
Innovative design on label detection fixes the antenna on the tear-off position. Since each finished label goes through the print-head, it can be read to detect defective labels.Advanced design allows printing on labels without a margin, resulting in no wasted white space, hence a total print cost savings.
User-friendly design ensures convenience and proficiency by allowing automatic label size calibration and the ability to easily adjust the antenna position through the setup menu.
Parameter
|
Printing Method |
Thermal Transfer |
|
Printing Resolution |
203 dpi |
|
Max Printing Speed |
12 ips |
|
Max Printing Width |
4.09″ (104 mm) |
|
Max Printing Length |
157″ (4000 mm) |
|
RFID |
Integrated UHF Reader/Encoder, EPC Gen 2 Class1 / ISO 18000-6C |
|
Memory |
8 MB FLASH ROM, 16 MB SDRAM |
|
Media |
Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper. |
|
Ribbon |
Wax, Wax/Resin, Resin |
|
Media Sensor |
Up & Down Reflective (Adjustable) / Transmissive (Adjustable) |
|
Fonts |
Five built-in dot martrix ASCII fonts, Downloadable TrueType fonts |
|
Barcode Types |
1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 |
|
Interfaces |
RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB Host, Centronics Parallel |
|
Power Rating |
110/240 VAC±10%, 50/60 Hz |
|
Weight |
15 kgs |
|
Dimensions |
W 286 mm x D 448 mm x H 280 mm |
|
Operating Environment |
Temperature: 0℃– 40℃ (32°F ~ +104°F); Relative humidity: 5% - 85% non condensing |
|
Storage Environment |
Temperature: -40℃– 60℃ (-40°F ~ +140°F); Relative humidity: 5% - 85% non condensing |
|
Optional Items |
Rotary Cutter, External Rewinder, |
